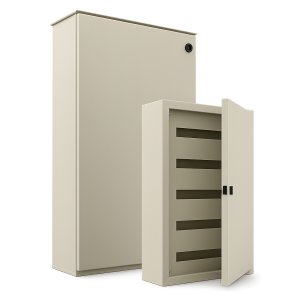

Electrical Distribution Boards

NESCO manufactures a wide range of distribution boards for low-voltage (LV) electrical systems that are suitable for residential, commercial, and industrial applications. Each unit is manufactured according to international and local standards.

More Options

Main switch consumer units
Safest and most robust protective devices for incoming mains power.
Dual RCD consumer units
High-integrity consumer units
Suitable for larger buildings where high numbers of sub-circuits.

Slide

Galvinized Iron

Galviniztion provides protection to standard iron sheets and hence prolongs the life of enclosures.

Slide

Aluminium

Aluminium enclosure systems can be used in zones of exposure to corrosion without any additional coating treatment.

Slide

Stainless Steel

Stainless Steel 304 and 316 rating is used for maximum protection and high corrosive environments.

Slide

Aluzinc

Aluzinc material is used in highly demandable environments, owing to its extremly stong and corrosion resistance.

Details

Construction:	Wall Mount
Configuration:	Modular
Material:	GI
Application:	MCB’s, Isolators, RCCB’s
Protection level:	IP-54
Other:	Custom designs and specifications

Custom specifications can be designed and manufactured on request

Description

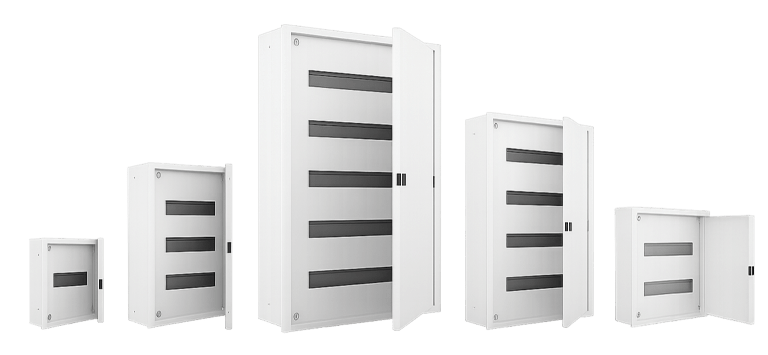

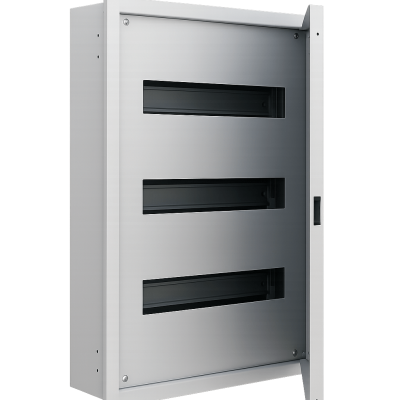

NESCO vertical distribution boards are available in multiple sizes with a choice of 4, 6, 8, 10, 12, 16 and 20 outgoing ways. Easy access, removable pan assembly, earth terminal holder, neutral link holder, and adjustable din rail.

Operating temperatures: Up to 55^O C
Color: RAL 9003 or custom
Ventilation type: Air
Degree of protection: IP-54
