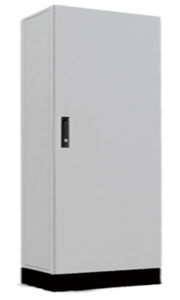

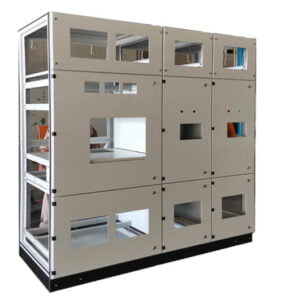

Floor Standing Enclosures

Floor Standing enclosures are designed and manufactured for various applications, including switchgears and control panels. Standard sizes and specifications available ex-stock, they can be customized on individual requirements.

  • High Corrosion Resistance
  • Fire and heat resistance
  • Hygiene
  • Impact resistance and strength
  • Aesthetic appearance
  • Long term value
Galvinized Iron

Galviniztion provides protection to standard iron sheets and hence prolongs the life of enclosures.


Aluminium enclosure systems can be used in zones of exposure to corrosion without any additional coating treatment.

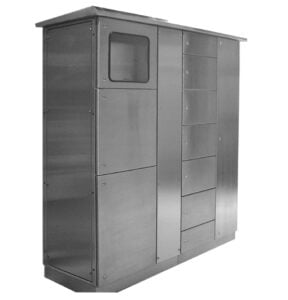

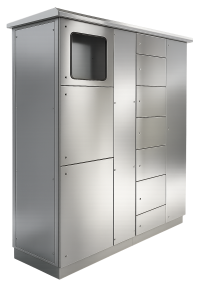

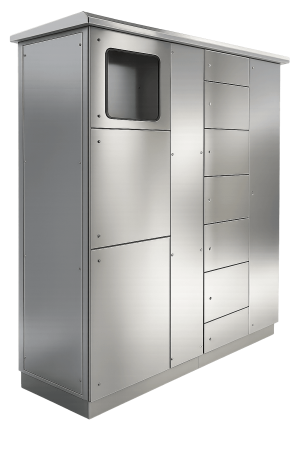

Stainless Steel

Stainless Steel 304 and 316 rating is used for maximum protection and high corrosive environments.


Aluzinc material is used in highly demandable environments, owing to its extremly stong and corrosion resistance.

previous arrow
next arrow


Construction:Floor Standing
Configuration:Standard, Modular, and Custom
Material:GI, Aluminum, SS, AZ
Application:Switchgears, Controlgears, etc
Protection level:IP-34, IP-54, IP-55, IP-65
Other:Mounting plates, lifting hooks
Custom specifications can be designed and manufactured on request


Floor standing enclosures are manufactured for a switchgears, control gears, automation controls and electrical infrastructures, in all domestic, commercial and industrial unit. These are in majority customized according to individual requirements.

  • Operating temperatures: Up to 55O C
  • Color: RAL 7035 or custom
  • Ventilation type: Air
  • Degree of protection: Varying form IP-34 till IP-65


Form 1 – No segregation between busbar, terminals and functional units
Form 2A – Functional units are separated from the busbar
Form 2b – External cable terminals are separated from the busbar.
Form 3a – Terminals for external cabling are not separated from busbars
Form 3b – Terminals for external conductors are separated from the functional unit and the busbars.
Form 4a – The terminals for external cabling are in the same compartment as functional unit
Form 4b – Terminals for external cabling are seperated from functional unit.
